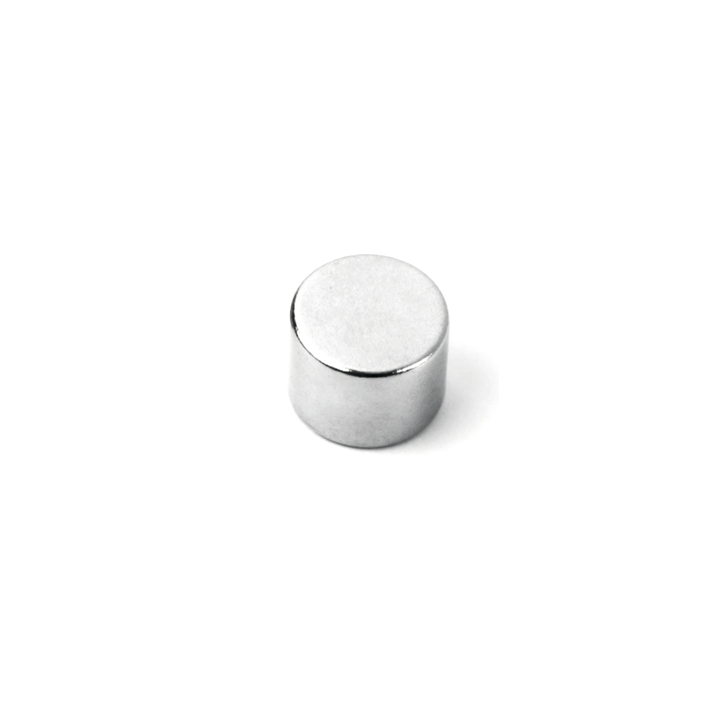

Disc Neodymium Magnet N52 D8x6mm

Disc Neodymium Magnet N52 D8x6mm

$0.135

  • Ask for a rebate

    • Disc NdFeB magnet Diameter 8 mm, height 6 mm

    N52,nickel-plated, axial

    Price and rebate

    500 pcs. 0.19 USA.*
    from 1000 pcs. 0.18 USA.*
    from 5000 pcs. 0.16 USA.*
    from 10000 pcs. 0.14 USA.*
    from 11000 pcs. according to quot



    + -
    Category: Tags: ,

    Description

    Disc Neodymium Magnet N52 D8x6mm-U-Polemag
    Product Name Disc Neodymium Magnet
    Material NdFeB
    Shape Disc
    Size D8 x 6 mm
    Tolerance +/- 0.1 mm
    Direction of magnetization Axis 6 mm
    Coating Nickel-plated (Ni-Cu-Ni)
    Magnetization N52
    Strength approx. 2.6 kg (approx. 25.5 N)
    Max. working temperature 65°C
    Weight 2.3 g

    Neodymium magnet

    N52 Neodymium magnet

    D8x6 mm N52 Disc Neodymium magnets, like our other super magnets, are made of a special NdFeB alloy, which allows neodymium block magnets to achieve an extreme adhesive force of up to 200 kg. In our shop, you can find blocks with heights ranging from 1 to 25 mm, which makes them very versatile in their use. The blocks have a protective nickel coating, some even have gold plating, making them look very appealing.
